Traction Machines
In physiotherapy, Traction machine is used to relieve pain and restore muscle function by mobilizing muscles, ligaments and joints. Physiotherapy Traction machines are clinically proven to be effective in pain treatment, particularly for cervical and lumbar pain. Physiotherapy treatment using a Traction Machine helps in reducing disc pressure, relax muscles, relieve nerve root compression and improve blood flow. HMS medical systems have manufactured and exported lumbar traction machines and cervical traction machines to numerous research centers, hospitals and many other institutions throughout the world. We have 3 models of Traction machines which can be used for Lumbar, Cervical and Pelvic Traction therapy, namely INDOTRAC® 2 (Electronic Traction Machine (Analogue)), DIGITRAC® 101 (Digital Traction Equipment) and INDOTRAC® D (Semi-Digital Traction Machine).

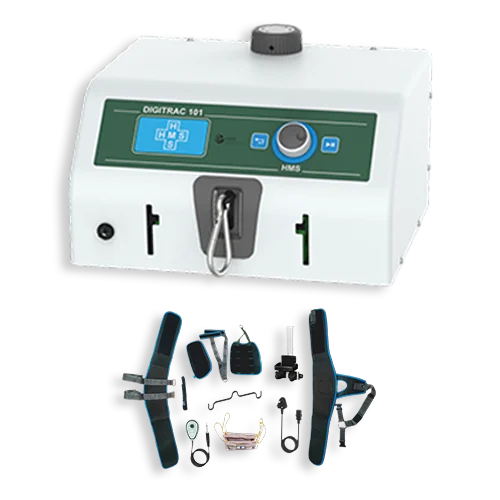

Cervical/Lumber Traction Unit
DIGITRAC® 101
DIGITRAC-101 is advanced Cervical/Lumber traction unit from HMS R & D. During the development, we take care of Patient safety and Durability of the device. DIGITRAC 101 is fully microcontroller controller device, it has large LCD display for parameters and easy to operate.
- Progressive and step increment
- Variable speed selections
- High force range upto 90 Kgs
- Low force range upto 85 Kgs
- Wide input voltage range
- User defined Hold, Rest and Treatment time
- Graphic LCD display for all parameters
- User-friendly digital interface
- Provision for Saunders fitting
- Reliable, durable heavy-duty motor
- Noiseless operation
- Easy to mount in table
- Light weight
- Model : DIGITRAC 101
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- Traction force – 3 Kg to 90 Kg (1 Kg step)
- Base force – 2 Kg to 85 Kg (1 Kg step)
- Traction mode – Cervical and Lumber
- Treatment time – 01 to 99 min (1 min step)
- Hold time – 01 to 99 sec (1 sec step)
- Rest time – 01 to 99 min (1 sec step)
- Traction speed – 5 speed
- Progressive step – 1 to 10 step (max)
- Input Voltage – 100 to 240 V AC 50/60 Hz
- Electrical class – Class 1 Type B
- Power consumption – 50 Watts
- Dimensions – LXBXW – 285mmx198mmx324mm
- Weight – 9.5 Kgs
Electronic Traction Machine
INDOTRAC® 2
INDOTRAC-2 is an advanced technology solid state circuitry Static / Intermittent traction unit. Moulded Aluminium gear box and metal gears gives long life to the equipment. It has silence smooth and powerful motor to pull the appropriate weight. The treatment time is controlled by digital timer and has indicators for Rest / Hold time. Separate tension control for cervical and pelvic.
- Imported Sturdy & noise less motor
- Moulded Aluminium Gear Box
- Patient safety remote
- Easy to operate
- Model : INDOTRAC2
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- Therapy types – Continuous and intermittent
- Traction force – 3 – 60 Kgs (120 Kg with doubler)
- Hold time – 20, 40, 60, 80 seconds
- Rest time – 1, 5, 10, 20 seconds
- Timer – 0 – 99 min.At the end of treatment time Acoustic signal and automatic reduction of traction force
- Mains Voltage – 220V / 50 Hz
- Safety class – Class I, Type BF (IEC 60601-1)
- Dimensions – L x B x H – 28 x 31 x 28 cms
- Weight – 11 Kgs
Electronic Traction Machine
INDOTRAC® D
INDOTRAC D is an advanced technology solid state circuitry based static / intermittent traction machine. We use Moulded Aluminium gear box and metal gears which gives longer life to our equipment. It has a silent, smooth and powerful motor to pull the appropriate weight. The treatment time, Rest time & Hold time is controlled by a microcontroller. Separate tension controls are provided for cervical and pelvic traction therapy.
- Static and Intermittent mode,
- Cervical and Lumbar traction.
- Two speed selections.
- High force and Low force can be set.
- 1 Kg step force setting.
- Wide input voltage range.
- User defined Hold, Rest and Treatment time.
- LCD display for all parameters,
- Actual force displayed in real time.
- Reliable, durable heavy-duty DC motor.
- Patient safety switch.
- Silent operation.
- Model : INDOTRAC D
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- Traction force : 3Kg to 60Kg (1Kg step)
- Base force : 0Kg to 55 Kg (1 Kg step)
- Traction mode : Cervical and Lumbar
- Treatment time : 01 to 99 min (1 min step)
- Hold time : 01 to 99 sec (1 sec step)
- Rest time : 01 to 99 sec (1 sec step)
- Traction speed : Speed 1 (1kg/sec);Speed 2 (3kg/sec)
- Input Voltage : 100 to 240 VAC 50/60Hz
- Electrical class : Class 1 Type B (lEC60601-1)
- Power consumption : 20 Watts (max)
- Dimension (LxWxH) : 275mm x 300 mm x 275 mm
- Weight : 9 Kgs
Model Comparison of HMS Traction Machines
| PARAMETERS | INDOTRAC® 2 | INDOTRAC® D | DIGITRAC® 101 |
|---|---|---|---|
| Therapy type Continuous & Intermittent | ✔ | ✔ | ✔ |
| Traction force | 3 – 60 Kgs (120Kg with doubler) | 3 – 60 Kgs (120Kg with doubler) | 3 – 90 Kgs |
| Hold time | 20, 40, 60 & 80 secs | 10 – 80 sec (5 sec step) | 1 – 99 sec (1 sec step) |
| Rest time | 1, 5, 10, 20 secs | 1 – 20 sec (1 sec step) | 1 – 99 sec (1 sec step) |
| Timer | 0 – 99 min | 0 – 99 min | 1 – 99 min (1 sec step) |
| Traction speed | X | X | 5 speed |
| Traction mode | Cervical & Pelvic | Cervical & Pelvic | Cervical & Lumber |
| Base force | X | X | 2 – 85Kgs (1 Kg step) |
| Progressive step | X | X | 1 – 10 step (max.) |
| Memory | X | X | 30 |
| Display | LED | 16 x 2 LCD | 128 x 64 LCD |
