The SONOMED 302 is a smart combination therapy. It has four different types of modality , including ultrasound and electrotherapy applications. In the development of the unit simplicity of operation and functionality were the principal consideration. All the available types of current and therapy are clearly displayed on a LCD screen. The corresponding parameters are easily set with soft touch keys and encoder. Pre-programmed memory with treatment applications offers protocols for more than 102 frequently occurring indications. And users can store their settings in user memory.
Ultrasound Combination Therapy Machines

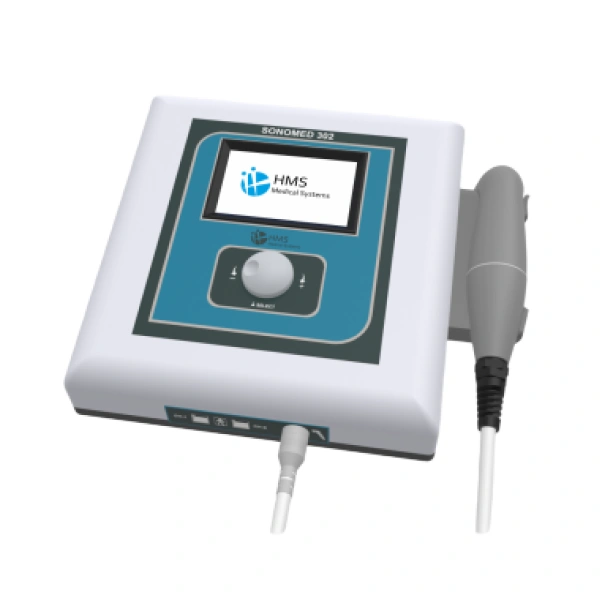

HMS Sonomed 302 – Interferential And Ultrasound Combo Machine
₹66,800.00 (excl. GST) + shipping charges
Model : SONOMED – 302
Operation Mode : Electrical
Usage : Clinical, Hospital, Personal
- Description
- Additional information
- Features
- Specifications
- Smart Combination Therapy
- Technical Data
- Brochure
| Weight | 2.8 kg |
|---|---|
| Dimensions | 30 × 25 × 10.5 cm |
Features
- Both medium and low frequency currents.
- Ultrasound and electrotherapy can be used simultaneously, combined and individually.
- Russian stimulation
- Ultrasound therapy 1 & 3 MHZ
- 102 Pre-programs with condition wise protocols.
- Cable and electrode checking mode.
- User settable memory.
- Soft touch keys
- Encoder for intensity.
- Light weight and compact design.
- Easy to operate.
- Plastic moulded cabinet.
- Graphic LCD display.
- International standards and specifications.
- Advanced patient safety system.
- Independent intensity variation for each channel.
Specifications
INTERFERENTIAL
- Carrier frequency – 2000 Hz / 4000 Hz
- Base frequency – 1 -150 Hz (1 Hz step)
- Sweep frequency Sweep modulation – 0-150 Hz (1 Hz step)
- Programs – 1 /1S 1/5, 1/5S 6/6S
- Therapy Modes:
- Four pole Interferential
- Four pole Vector 90degree
- Four pole Vector 45degree
- Two pole pre-modulated
RUSSIAN CURRENT
- Frequency – 2500 Hz
- Ramp Rise/Fall – 1-10 Sec (1Sec step)
- Burst – 50-250 Hz(10 Hz step)
- Hold ON – 1-99 Sec (1Sec step)
- Hold OFF – 1-99 Sec (1Sec step)
TENS
- Frequency – 2 – 250 Hz (in Hz variation)
- Pulse Width – 20 – 250 µsec (in 1 µsec variation)
- Burst Frequency – 1 – 10 Hz
Smart Combination Therapy
ULTRASOUND THERAPY
- Frequency – 1 & 3 MHZ
- Mode – Cont. /Pulse
- Pulse freq. – 100Hz / 9 settings
- Max. Intensity – 3 W/cm square
- Contact control – Acoustic sensor
Technical Data
- Display – 128 x 64 Graphic LCD display
- Mains Voltage – 90 – 270V /50/60Hz,
- Safety Class – Class 1, Type BF ( IEC60601-1)
- Dimensions – LxBxH – 30x25x10.5cms
- Weight – 2.8 Kgs
