ULTRASOUND COMBINATION THERAPY MACHINES

Ultrasound Combination Therapy Machines are widely used in physiotherapy, as both ultrasound and electrical stimulation can be used together to reduce pain and promote faster healing in muscles and soft tissues. HMS provides Ultrasound combination therapy devices in 4 models namely, SONOMED 9s, SONOMED 302, SONOMED 7s and SONOTENS. The all new SONOMED 9S offers advanced combination therapy with ultrasound and electrotherapy, featuring intuitive operation and customizable treatment options. SONOMED 302 is a smart combination therapy solution equipped with ultrasound and electrotherapy functionalities. SONOTENS is an advanced level of solid-state 1 Mhz ultrasound therapy device with dual channel TENS. SONOMED 7s is a combination therapy machine which combines Interferential, Russian, TENS, Muscle Stimulator and Ultrasound Therapy. Our Combination Therapy Machines are highly acclaimed to be effective in the field of sports medicine and are used by Physiotherapists around the globe. HMS devices are designed to last long and provide good value for your money.

Product Enquiry

    Our Range of Ultrasound Combination Therapy Machines

    Interferential And Ultrasound Combo Machine

    SONOMED® 9S - Interferential And Ultrasound Combo Machine

    SONOMED® 9S

    The SONOMED 9S is a premium combination therapy. It has four different types of modality, including ultrasound and electrotherapy applications. In the development of the unit simplicity of operation and functionality were the principal consideration. All the available types of current and therapy are clearly displayed on a 7″ Colour touch screen. The intensity can be easily set with encoder. Pre-programmed memory with treatment applications offers protocols for more than 132 frequently occurring indications. And users can store their settings in user memory.

    FeaturesSpecificationsTechnical Data
    • Both medium and low frequency currents
    • Ultrasound and Electro therapy can be used simultaneously, combined and individually
    • Can treat 3 patients simultaneously
    • Ultrasound therapy 1 & 3 MHZ
    • 132 Pre-programs with condition wise protocols
    • Cable and electrode checking mode
    • User settable memory with patient name
    • Encoder for intensity
    • Light weight and compact design
    • Easy to operate
    • Plastic cabinet
    • 7″ Colour Touch Display
    • International standards and specifications
    • Two sizes of Transducer
    • Advanced patient safety system
    • Static Ultrasound Transducer
    • Independent intensity variation for each channels
    • 4 Channel for Electro Therapy
    • Model : SONOMED – 9S
    • Operation Mode : Electrical
    • Usage : Clinical, Hospital, Personal

    Interferential

    • Carrier frequency – 2000Hz – 4000Hz(100Hzstep); 4000Hz 10000Hz(500Hzstep)
    • Base frequency – 1 -250 Hz (1 Hz step)
    • Sweep frequency Sweep modulation – 0-250 Hz (1 Hz step)
    • Programs – 1 /1S, 5/1/5S, 6/6S
    • Therapy Modes – Four pole Classic; Four pole Vector 900; Four pole Vector 45deg; Two pole pre-modulated

    Russian Current

    • Frequency – 2000Hz – 4000Hz(100Hz step); 4000Hz – 10000Hz(500Hz step)
    • Modulation – Constant/ Surge
    • Ramp Rise/Fall – 1-10 Sec (1Sec step)
    • Burst – 30-250 Hz(1 Hz step)
    • Hold ON – 1-99 Sec (1Sec step)
    • Hold OFF – 1-99 Sec (1Sec step)

    Diadynamic Currents

    • DF, MF, CP, LP, RS, MM

    VMS ( Vibratory Motor Stimulation )

    • Frequency – 2-250Hz
    • Waveform – Inverted Symmetric
    • Pulse width – 20-250µs

    Muscle Stimulator Currents

    • Plain galvanic – Continuous DC current
    • Int. galvanic – Diagnostic – 0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100, 300, 1000mSec; Therapeutic – 30-300mSec (10mSecs)

    Microcurrent

    • Frequency – 1-1000Hz
    • Intensity – 10µA-1000µA

    Iontophoresis

    • Dosage – 2 -150mA/min (2mA/min step)
    • Intensity – 1-5 mA (0.5mAstep)
    • Type – Constant/ lnterrupted

    Tens

    • Frequency – 2-250 Hz (in Hz variation)
    • Pulse Width – 20-250 µsec(in 1 µsec variation)
    • Burst Frequency – 1-10 Hz
    • Sweep Frequency – 2-245Hz to 7-250Hz
    • Waveform – Symmetric/Asymmetric/Alternating/ Monophasic
    • Modes – Continuous/ Burst/ Sweep burst & Sweep

    Ultrasound Therapy

    • Frequency – 1 & 3 MHZ
    • Mode – Cont./Pulse
    • Pulse freq. – 16Hz/48Hz/100Hz/9 settings
    • ERA Transducer L – 5cm2
    • ERA Transducer S – 1cm2 (Optional)
    • ERA Static Transducer – 5cm2
    • Max. Intensity – 3W/cm2
    • Contact control – Acoustic sensor
    • Type of beam – Collimated
    • Beam non-uniformity Ratio – 5:1(Max)

    Faradic/Surge Faradic

    • Freq./P. Width – 50Hz/0.7mSec
    • Surge ON time – 1-10sec(in 1sec step)
    • Surge OFF time – 1-6sec(in 1 sec step)

    Ultra Reiz

    • Frequency – 142.8Hz
    • ON time – 2mSec
    • OFF time – 5mSec

    HV Pulse Current

    • Frequency – 1-200Hz(1Hz step)
    • Pulse width – 100µs
    • Type – Constant/Surge
    • Display – 7″ Colour Resistive Touch Display
    • Mains Voltage – 100-240V/50/60Hz,
    • Safety Class – Class 1, Type BF (lEC60601-1)
    • Dimensions – LxBxH-30x26x15cms
    • Weight – 3.2Kgs

    Interferential And Ultrasound Combo Machine

    SONOMED® 7s

    SONOMED 7s Interferential and Ultrasound Therapy machine is a high quality, advanced, Inferential & Ultrasound combination Therapy equipment. Our equipment is a combination of interferential, Russian, TENS, Muscle Stimulator and Ultrasound Therapy machine. It is designed in such a way that it can be used to provide IFT and USD separately or in a combined manner. It is quite effective in sports medicine and It meets all International Standards and Specifications.

    SONOMED® 7S - Interferential And Ultrasound Combo Machine
    FeaturesSpecificationsTechnical Data
    • Both medium and Low frequency currents
    • 132 Pre-programmes condition wise with protocols
    • Cable and Electrode checking mode
    • User settable memory
    • Light weight and compact design
    • Easy to operate
    • Russian stimulation
    • Ultrasound therapy 1 & 3 MHz
    • Large graphic LCD Display
    • International standards and specifications
    • Advanced patient safety system
    • Output mode CC / CV
    • Independent Intensity controls for each channel
    • Universal input Voltage 90V-270V.
    • Soft touch (Cap-sense) keys
    • Plastic moulded cabinet
    • Model : SONOMED 7s
    • Operation Mode : Electrical
    • Usage : Clinical, Hospital, Personal

    Interferential

    • Carrier frequency – 2000 Hz / 4000 Hz
    • Base frequency – 1 -150 Hz (1 Hz step)
    • Sweep frequency – 0-150 Hz (1 Hz step)

    Russian Current

    • Frequency – 2500 Hz
    • Ramp Rise/Fall – 1-10 Sec (1Sec step)
    • Burst – 50-250 Hz(10 Hz step)
    • Hold ON – 1-99 Sec (1Sec step)
    • Hold OFF – 1-99 Sec (1Sec step)

    Muscle Stimulator Currents

    • Plain galvanic – Continuous DC Current
    • Int. galvanic – Diagnostic – 0.01, 0.03, 0.1., 0.3, 1.3, 10, 30, 100, 300 mSec (in 10 mSec variation) Off Time – 500, 1000, 2000 mSec.

    Tens

    • Frequency – 2 – 250 Hz (in Hz variation)
    • Pulse Width – 20 – 250 sec (in 1 sec variation)
    • Burst Frequency – 1 – 10 Hz

    Low Frequency Alternating Current

    • Diadynamic Currents – DF, MF, CP, LP, RS, MM
    • Timer – 0 -60 minutes
    • Display – 128 x 128 Graphic back lite LCD display
    • Sweep modulation Programs – 1 /1S 1/5, 1/5S 6/6S
    • Therapy Modes – Four pole Interferential, Four pole Vector 90degree , Four pole Vector 45degree , Two pole pre-modulated

    Ultrasound Therapy

    • Frequency – 1 & 3 MHZ
    • Mode – Cont. /Pulse
    • Pulse freq. – 100Hz / 9 settings
    • Max. Intensity – 3 W/cm square
    • Contact control – Acoustic sensor

    Faradic

    • Freq./P.width – 50 Hz/0.7 mSec.
    • Surge ON time – 1 -10 sec. (in 1 Sec.variation)
    • Surge OFF time – 1 – 6 sec. (in 1sec. variation)

    Ultra Reiz

    • ON Time – 2 mSec
    • OFF Time – 5 mSec
    • Mains Voltage – 90 – 270V /50/60Hz
    • Safety Class – Class 1, Type BF ( IEC60601-1)
    • Dimensions – LxBxH – 30x25x11.5cms
    • Weight – 3.2 Kgs

    Interferential And Ultrasound Combo Machine

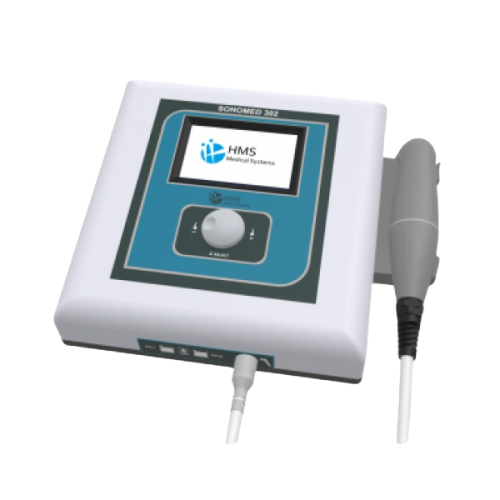

    SONOMED 302 - Interferential And Ultrasound Combo Machine

    SONOMED® 302

    The SONOMED 302 is a smart combination therapy. It has four different types of modality , including ultrasound and electrotherapy applications. In the development of the unit simplicity of operation and functionality were the principal consideration. All the available types of current and therapy are clearly displayed on a LCD screen. The corresponding parameters are easily set with soft touch keys and encoder. Pre-programmed memory with treatment applications offers protocols for more than 102 frequently occurring indications. And users can store their settings in user memory.

    FeaturesSpecificationsTechnical Data
    • Both medium and low frequency currents.
    • Ultrasound and electrotherapy can be used simultaneously, combined and individually.
    • Russian stimulation
    • Ultrasound therapy 1 & 3 MHZ
    • 102 Pre-programs with condition wise protocols.
    • Cable and electrode checking mode.
    • User settable memory.
    • Soft touch keys
    • Encoder for intensity.
    • Light weight and compact design.
    • Easy to operate
    • Plastic moulded cabinet.
    • Graphic LCD display.
    • International standards and specifications.
    • Advanced patient safety system.
    • Independent intensity variation for each channel.
    • Model : SONOMED – 302
    • Operation Mode : Electrical
    • Usage : Clinical, Hospital, Personal

    Interferential

    • Carrier frequency – 2000 Hz / 4000 Hz
    • Base frequency – 1 -150 Hz (1 Hz step)
    • Sweep frequency Sweep modulation – 0-150 Hz (1 Hz step)
    • Programs – 1 /1S 1/5, 1/5S 6/6S

    Russian Current

    • Frequency – 2500 Hz
    • Ramp Rise/Fall – 1-10 Sec (1Sec step)
    • Burst – 50-250 Hz(10 Hz step)
    • Hold ON – 1-99 Sec (1Sec step)
    • Hold OFF – 1-99 Sec (1Sec step)

    Tens

    • Frequency – 2-250 Hz(in Hz variation)
    • Pulse Width – 20-250 µsec(in 1µsec variation)
    • Burst Frequency – 1-10Hz

    Ultrasound Therapy

    • Frequency – 1 & 3 MHZ
    • Mode – Cont. /Pulse
    • Pulse freq. – 100Hz / 9 settings
    • Max. Intensity – 3 W/cm square
    • Contact control – Acoustic sensor
    • Display – 128 x 64 Graphic LCD display
    • Mains Voltage – 90 – 270V /50/60Hz
    • Safety Class – Class 1, Type BF ( IEC60601-1)
    • Dimensions – LxBxH – 30x25x10.5cms
    • Weight – 2.8 Kgs

    Tens And Ultrasound Combo Machine

    SONOTENS®

    Sonotens an advanced solid state 1 MHz ultrasound therapy and dual channel TENS equipment is available in a sleek, compact and water-resistant design. It can be operated in either continuous mode or in pulsed mode. A digital display is provided to indicate all the necessary details like mode, power, timer etc. This combination therapy equipment come with an easily selectable micro-controller-based timer and plastic moulded lightweight transducer. Sonotens has six pre-programmed output modes which can be selected via a soft touch key and comes with a 15 mins built-in timer. It can be operated  main power supply.

    SONOTENS® - Tens And Ultrasound Combo Machine
    FeaturesTechnical Data

    Ultrasound

    • Continuous and pulsed ultrasound
    • Digital display of treatment time
    • Provision for combination therapy
    • Built in digital circuit and control all functions
    • Digital display of applied intensity.
    • Underwater treatment transducer
    • Compact and light weight
    • Non thermal effect

    Tens

    • Six pre programs
    • Micro-controller controlled circuitry
    • Built-in 15 min timer
    • Separate intensity control for both channels.
    • Model : SONOTENS
    • Operation Mode : Electrical
    • Usage : Clinical, Hospital, Personal
    • Mains Voltage – 90 – 270V / 50 or 60 Hz
    • Safety Class – Class I, Type BF (IEC 60601 -1)
    • Dimensions – L x B x H – 21 x 22.5 x 6.5 cms
    • Weight – 1.75 Kgs

    Model Comparison of HMS Ultrasound Combination Therapy Machines

    PARAMETERSSONOTENS®SONOMED® 7sSONOMED® 302
    ULTRASOUND
    Frequency1MHz1 & 3 MHz1 & 3 MHz
    Output modesContinuous/PulsedContinuous/PulsedContinuous/Pulsed
    Pulse duration / freq.1,2,4&5 msec / 100Hz100Hz/9 settings100Hz/9 settings
    Intensity (max.)3W/cm²3W/cm²3W/cm²
    Programs47 presets47 presets

    TENS
    FrequencyUpto 250Hz2 – 250Hz 2 – 250Hz
    Pulse widthX20 – 250sec (1 sec step)20 – 250sec (1 sec step)
    Burst frequencyX1 – 10 Hz1 – 10 Hz
    Program5 pre-sets77 presets57 presets
    WaveformAsymmetrical Bi-phasic square pulse

    MUSCLE STIMULATOR CURRENTSXX
    Plain galvanicXContinuous DC currentX
    Int. galvanicXDiagnostic & therapeuticX

    FARADICXX
    Freq. / p.widthX50Hz / 0.7msecX

    SURGE FARADICX
    Surge on timeX1 – 10 sec (1 sec step)X
    Surge off timeX1 – 6 sec (1 sec step)X

    Ultra reizXX
    ON timeX2 msecX
    OFF timeX5 msecX

    LOW FREQUENCY ALTERNATING CURRENTXX
    Diadynamic currentsXDF, MF, CP, LP, RS, MMX

    RUSSIAN CURRENTX
    FrequencyX2500 Hz2500 Hz
    Ramp Rise/FallX1 – 10 sec (1 sec step)1 – 10 sec (1 sec step)
    BurstX50 – 250 Hz (10 Hz step)50 – 250 Hz (10 Hz step)
    Hold ONX1 – 99 sec (1 sec step)1 – 99 sec (1 sec step)
    Hold OFFX1 – 99 sec (1 sec step)1 – 99 sec (1 sec step)

    INTERFERENTIALX
    Carrier frequencyX2000Hz/4000Hz2000Hz/4000Hz
    Base frequencyX1 – 150Hz (1 Hz step)1 – 150Hz (1 Hz step)
    Sweep frequencyX0 – 150Hz (1 Hz step)0 – 150Hz (1 Hz step)
    Sweep Modulation ProgramsX1/1S 5/1/5S 6/6S1/1S 5/1/5S 6/6S
    Output channelsDependentDependentDependent
    Therapy modesXFour pole interferential, Four pole vector 90°, Four pole vector 45 °, Two pole pre-modulatedFour pole interferential, Four pole vector 90°, Four pole vector 45 °, Two pole pre-modulated
    StaticXXX
    DisplayLEDLCD (128×128)LCD (128×64)
    Timer0 – 99 min0 – 99 min0 – 99 min
    Acoustic sensor
    MemoryX3030
